DZ47LE-63
SINGI
Key Parameters:
· CE/ISO1009-1/CCC certificates;
· Rated voltage:230/400VAC;
· frequency:50/60Hz;
· Rated current:6,10,16,20,25,32,40,50,63A;
· 1+N/2/3/3+N/4poles available;
· Mechniacal life:20,000 times;
· Flame-redardant:PA66 nylon material;
· Protection degree:IP20;
· Standard:IEC1009-1;
· Enduring tem.50°C;
· Breaking Capacity:6KA;
· Lighting/Motor protection optional;
· Protections:over load,short circuit and over/unver voltage can be extra supplied.
· More than 10 years professional distribution box manufacturer;
· Parts are processed by ourselves to make sure of the quality abd can be supplied for your DIY;
· Quality insurance 18months;
· factory established in 1980.
Application:

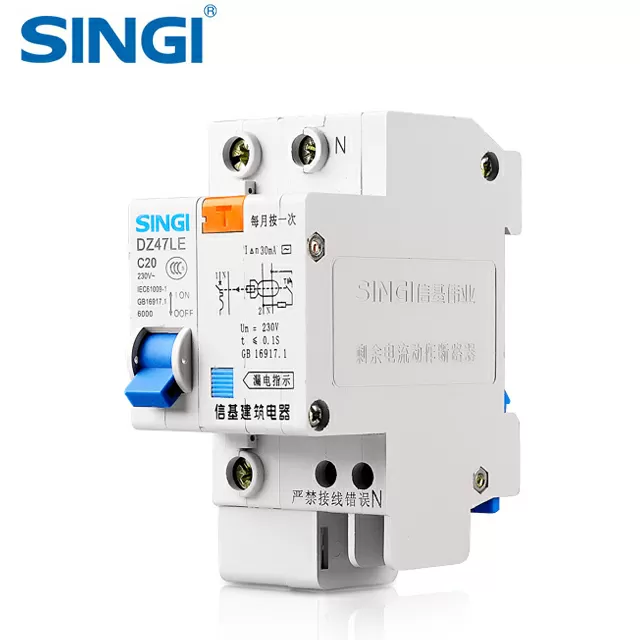

DZ47LE-63 series residual current circuit breaker is applied in the power system of AC 50Hz,single phase 230V,three phases 400V.When somebody gets and electric shock or the leakage current exceeds the default value, the ELCB can cut off the power automatically to protect the personal safety and prevent the equipment from the fault resulted from the leakage current.
The ELCB also can protect the circuit against overload and short circuit or can be used for the unfrequent switch of the circuit under normal condition. And extra protection functions like over voltage, under voltage can be added according to customers’ request.
It conforms to the standard IEC1009-1,GB16917.1.
Structure:
DZ47LE-63 residual current circuit breaker is composed of DZ47-63high breaking mini circuit breaker and current leakage release. The ELCB is current electronic current leakage circuit breaker, the main parts include zero sequence current transformer, electronic panel, current leakage release and the circuit breaker with protection functions of over load, short circuit.
Technical Parameters:
| Rated Voltage(V) | Rated Current of Case Inm(A) | Poles | Neutra Linel | Rated CurrentIn(A) | Rated Short Circuit Breaking Capacity Icu(KA) | Rated Current Leakage Breaking Current (mA)) | Rated Current not Breaking Current (mA) | |
| Breaking Capacity Icu(KA) | COS | |||||||
| 230 | 63 | 1 | N | 6,10,16, 20,25,32, 40,50,63 | 6 | 0.7 | 30,50, 100,300 | 15,25, 50,150 |
| 230 | 63 | 2 | 6 | 0.7 | ||||
| 400 | 63 | 3 | 6 | 0.7 | ||||
| 400 | 63 | 3 | N | 6 | 0.7 | |||
| 400 | 63 | 4 | 6 | 0.7 | ||||
| 230 | 63 | 1 | N | 4.5 | 0.8 | |||
| 400 | 63 | 2 | 4.5 | 0.8 | ||||
| 400 | 63 | 3 | 4.5 | 0.8 | ||||
| 400 | 63 | 3 | N | 4.5 | 0.8 | |||
| 400 | 63 | 4 | 4.5 | 0.8 | ||||
Remark: wiring is terminal with clamp, cable dia.:10mm2below available for hard cable
