| Num： | |
|---|---|

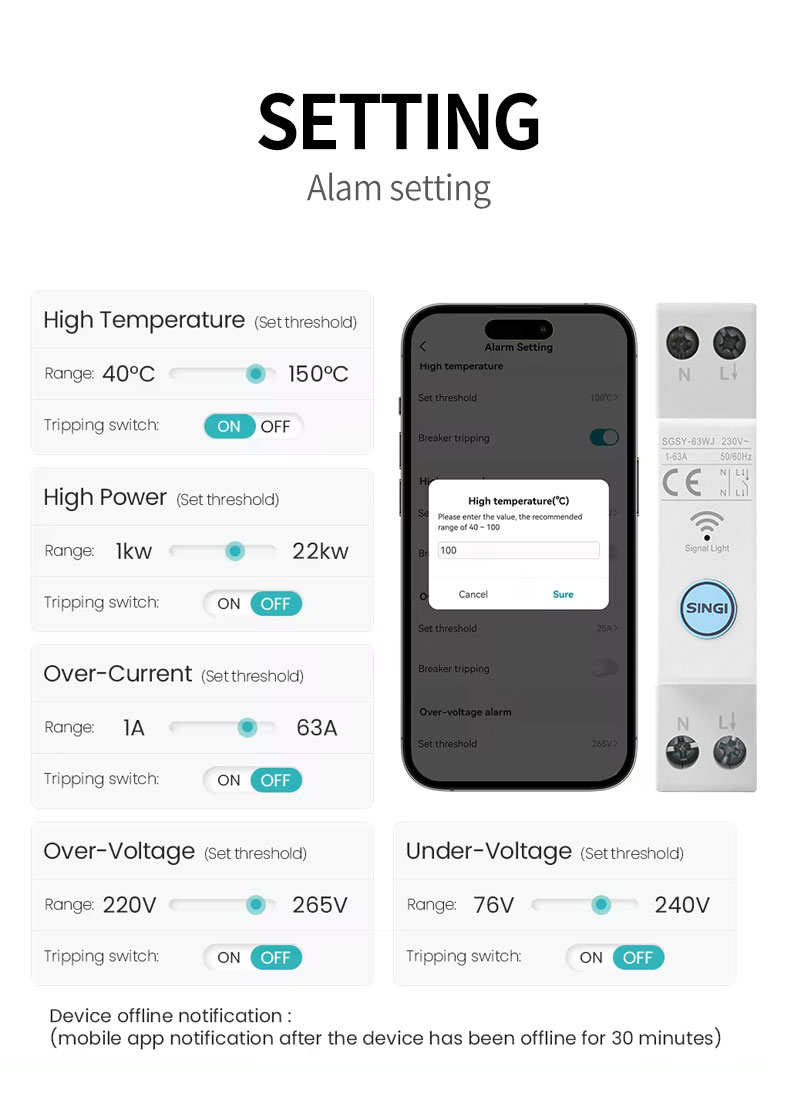

| Rated Operating Protection Range | 90V-250V |
| Under-voltage Protection Range | 76V-240V |
| Over-voltage Protection Range | 220V-265V |
| Over-current Protection Range | 1-63A |
| High Power Protection Range | 1KW-22KW |
| High Temperature Protection Range | 40-150℃ |

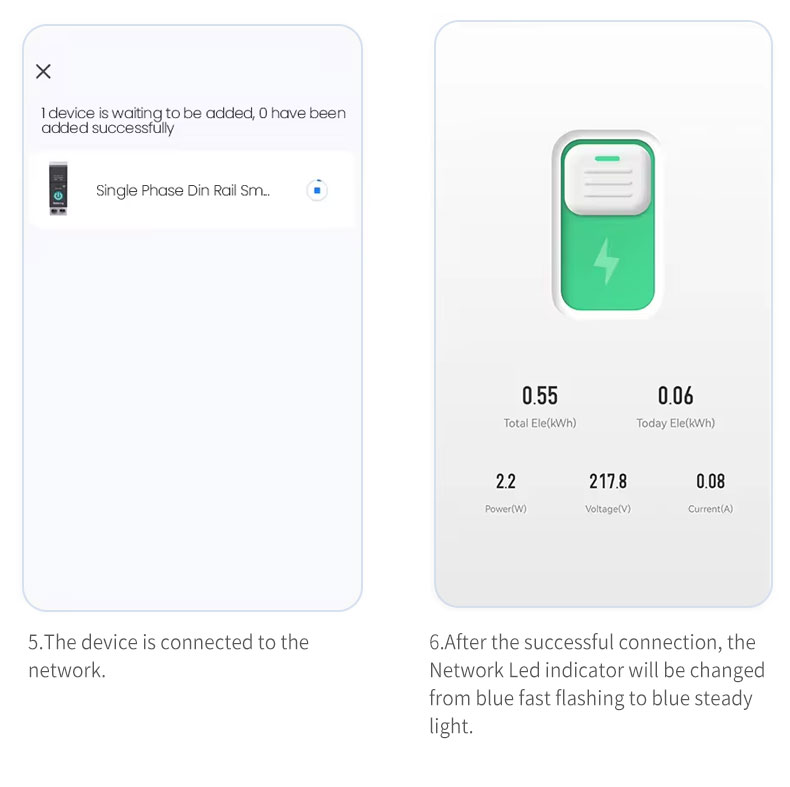

Remote control at anytime from anywhere by TUYA APP / Smart Life APP Smart Life app on mobile ,
no distance limit Schedule / Timing, countdown, cycle timing Voice control by Amazon Alexa
echo dot / Google assistant
| Brand | SINGI |
| APP | Tuya / Smart Life , If you want to control the smart switch with voice, use Google Assistant,Amazon Alexa |
| Poles Description | 1P+N |
| Maximum Current | 63A |
| Working Voltage | AC 90-250V,50/60Hz |
| Material | Fire-retardant PC |
| Wiring | Neutral Wire Required |
| Certificate | CE-LVD,RED |
| COMM. Protocol | WiFi(2.4GHz) |
Singi is a leading Chinese manufacturer specializing in high-quality electrical distribution and smart home solutions. With a focus on safety and innovation, we provide a wide range of products including circuit breakers, smart switches, and power distribution systems.
Manufacturing Expertise: Over 31 years of experience in the electrical industry, ensuring all products meet rigorous safety standards.
Product Quality: Our smart switches are designed with durable materials and are fully compatible with global ecosystems like Tuya Smart.
Global Compliance: We adhere to international electrical safety regulations, providing reliable solutions for both residential and commercial applications.
Email: salesmanager@singi.com
Q: Does this smart switch have built-in short-circuit protection?
No, this product does not come with an isolation function or short-circuit protection.
It must be configured with a circuit breaker at the upper level (upstream) for safe operation.
Q: Does the installation require a Neutral wire?
Yes, the wiring diagram indicates that both an L Pole (Live) and an N Pole (Neutral) connection are required for this device.

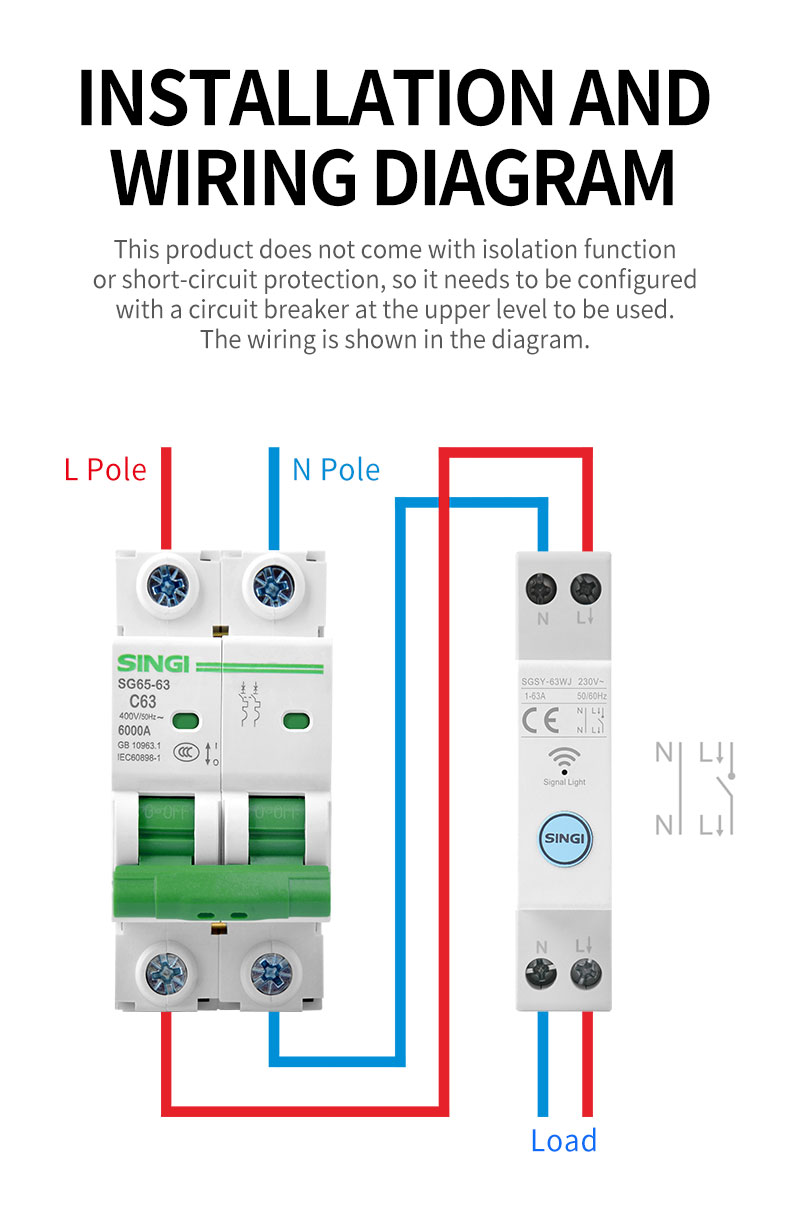

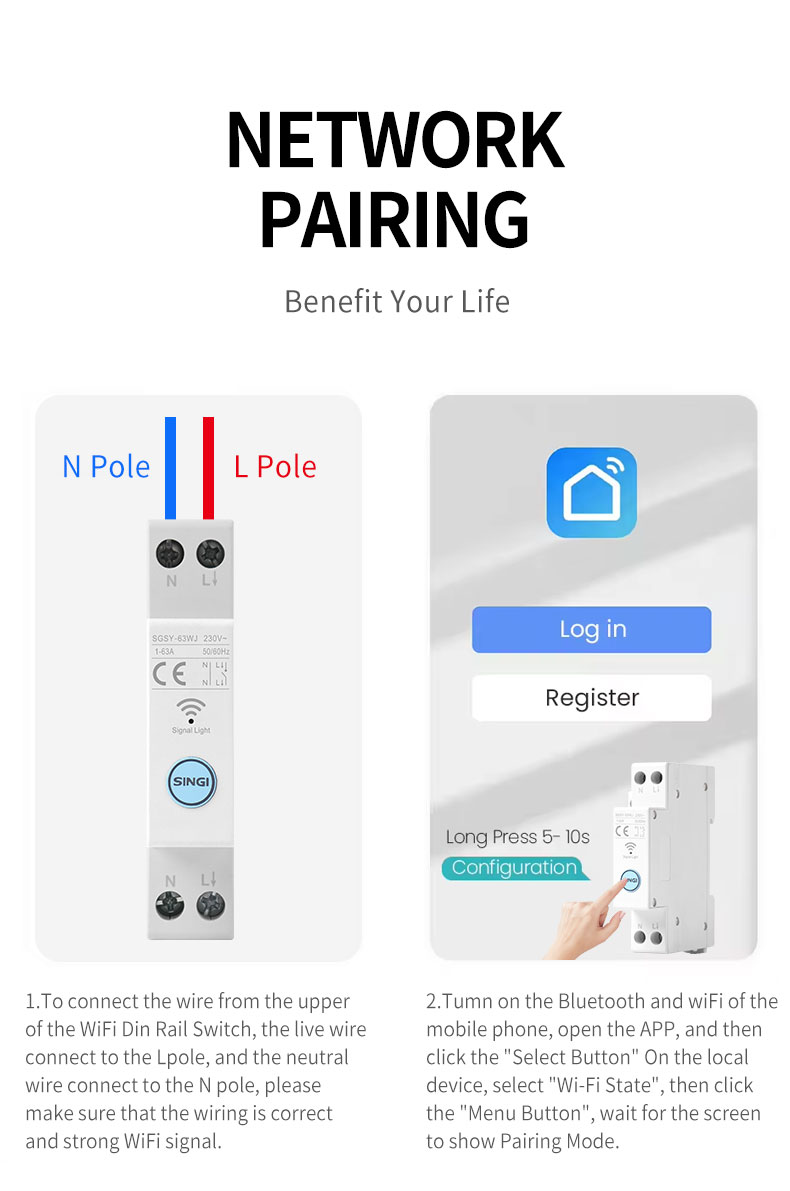

Q: How should the device be wired to the power supply?
The L Pole from the upstream circuit breaker connects to the L terminal of the device.
The N Pole from the upstream circuit breaker connects to the N terminal of the device.
The load should be connected to the output terminals as specified in the wiring diagram.
Q: What is the recommended installation setup for safety?
The manufacturer explicitly states the wiring must be shown as in the diagram, specifically highlighting the necessity of an external circuit breaker.
Ensure all power is disconnected before attempting to wire the L and N poles.

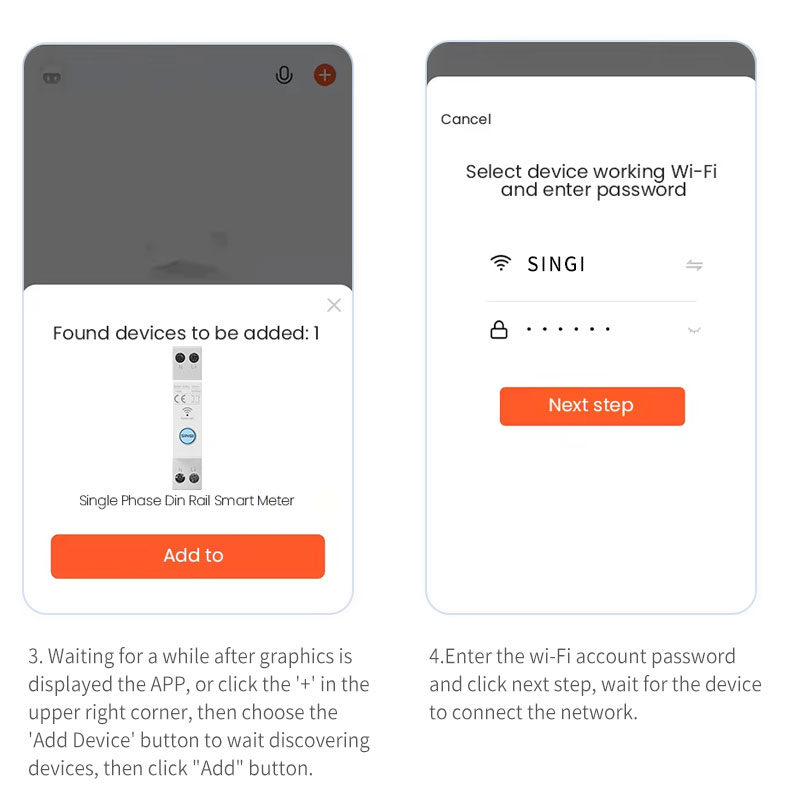

Q: Which mobile application is compatible with this switch?
As a Tuya-enabled device, it is fully compatible with the Tuya Smart or Smart Life apps for remote control and automation.

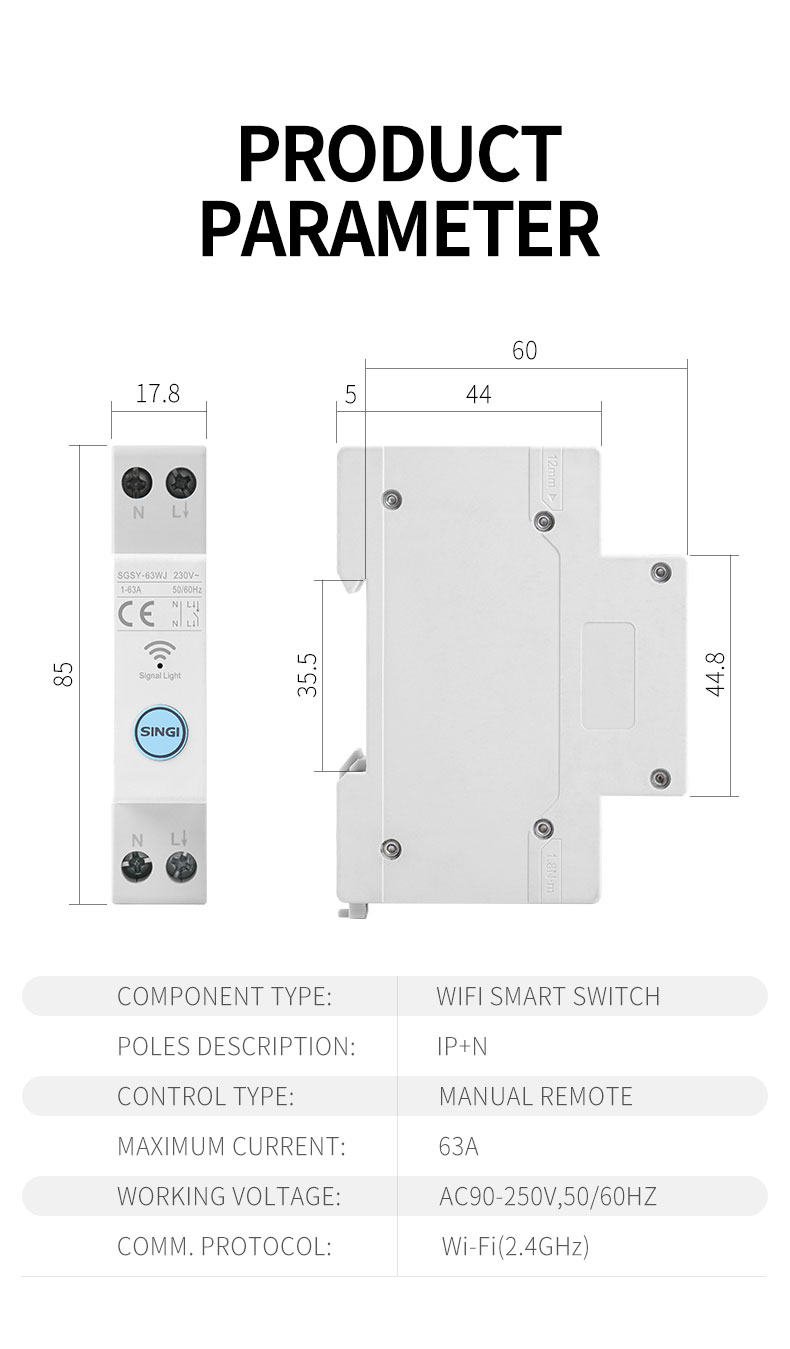

Q: What are the physical dimensions of the switch?
The product dimensions are 85mm x 65mm x 17.8mm, which may require specific wall box considerations compared to standard 86-type square panels.
