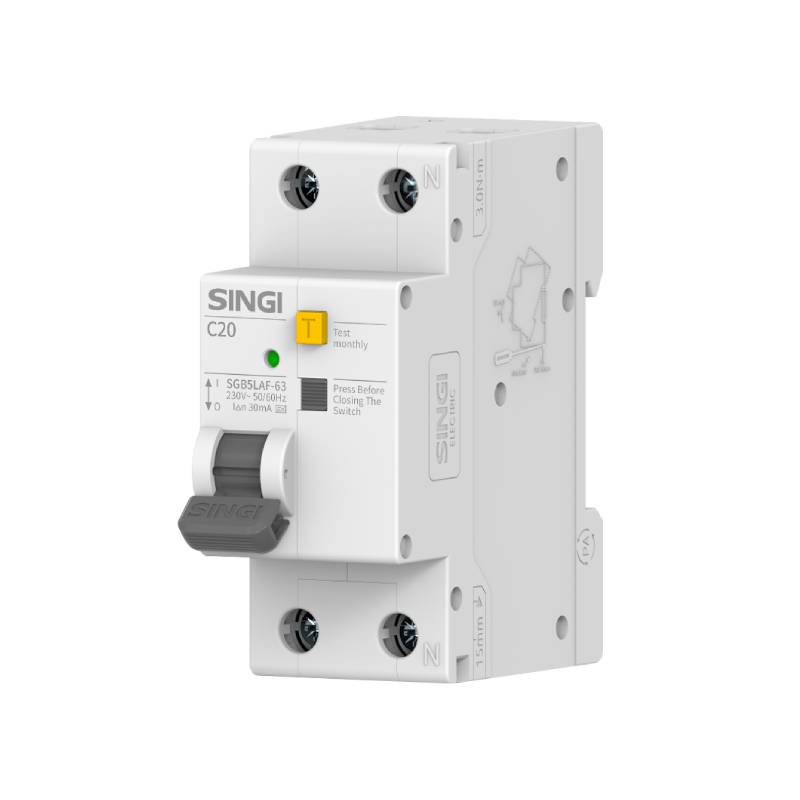

Characteristic
1.Short circuit protection; 2.Overload protection; 3.Leakage protection;
4.Arc protection; 5.Flame retardant material; 6. Short arc;
7.High breaking capacity; 8.Multiple wiring options
Technical parameter
| Standard | IEC/EN61009-1、IEC/EN62606、GB/T16917.1、 GB/T31143 |
| Pole | 1P+N(Two Pole 36mm Width) |
| Rated Working Voltage Ue | AC230V |
| Maximum current of the shell frame | 63A |
| Rated Current In | 6A,10A,16A, 20A, 25A, 32A,40A,50A,63A |
| Rated Insulation Voltage Ui | 500V |
| Rated impulse withstand voltage Uimp | 4000V |
| Rated residual operating current lΔn | 10mA、30mA、50mA、100mA、300mA |
| Rated residual non-operating current | 0.5I△n |
| Rated frequency | 50/60Hz |
| Type of residual current protection | A type/AC type |
| Rated residual current breaking capacity lΔm | 3000A |
| Tripping Type | Thermomagnetic |
| Instant release type | B type/C type |
| Limiting Breaking Capacity Icu | 10000A |
| Operational Breaking Capacity Ics | 7500A |
| Electrical Life | |
| Actual Average Value | ≥3000 times |
| Standard Specified Value | 2000 times |
| Mechanical Life | |
| Actual Average Value | ≥4000 times |
| Standard Specified Value | In≤25A2000 times / In>25A1000times |
| Over-voltage Level | III |
| Pollution degree | 3 |
| Pollution degree | IP40;Terminal block IP20 |
| Wiring Capacity | 1.0~16mm² |
| Wiring Torque | 3Nm |
| Operating Ambient Temperature | -25℃~+70℃ |
| Storage Ambient Temperature | -35℃~+80℃ |
| Installation Method | DIN35 |
| Altitude | ≤2000m |
| Weight | 0.19kg/piece |
| Dimension | |
| Length | 85mm |
| Width | 36mm(1P+N) |
| Height | Max 79mm |
| Package | |
| Pcs / Box | 6 |
| Box / Carton | 10 |
| Storage | The product should be stored in a well-ventilated warehouse, with relative humidity not exceeding 80%, and the ambient temperature should be between -35°C and +80°C. Additionally, there should be no acidic, alkaline, or corrosive gases present. |

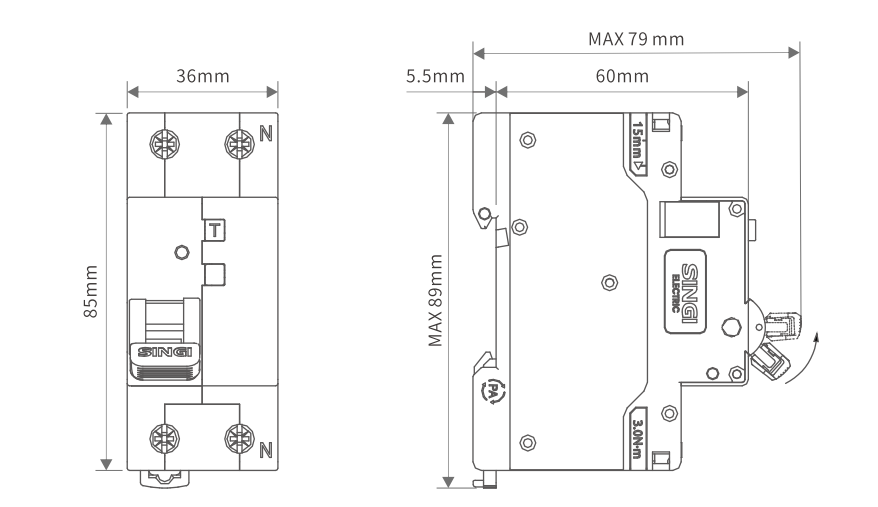

Product dimensions
Fault indication
1. When the circuit breaker trips due to leakage or arc fault, the indicator button will pop up. Please press the button before closing.
2.Indicator status:
①The red light is always on when the power is turned on normally; the red light flashes for 3 seconds and then turns off when the power is turned off normally.
②When the MCB is closed again after tripping due to Arc fault, the red light flashes for about 10 seconds and then returns to a constant red light.
③When the MCB is closed again tripping due to Leakage fault, the green light flashes for about 10 seconds and then returns to a constant red light.

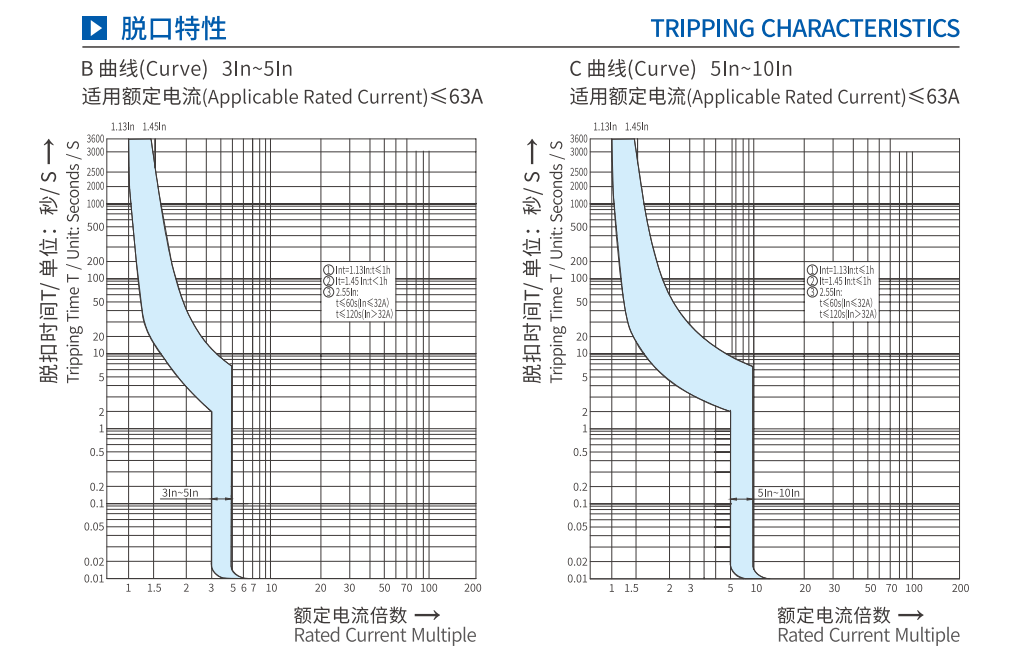

Tripping Characteristics
AFDD also konwn as Arc Fault Circuit Interrupter (AFCI) ,Arc Fault Protection Device (AFPD) , Arc Fault Detector (AFD), Arc Fault Circuit Breaker (AFCB),
Arc Fault Monitoring Device,Arc Fault Protector
