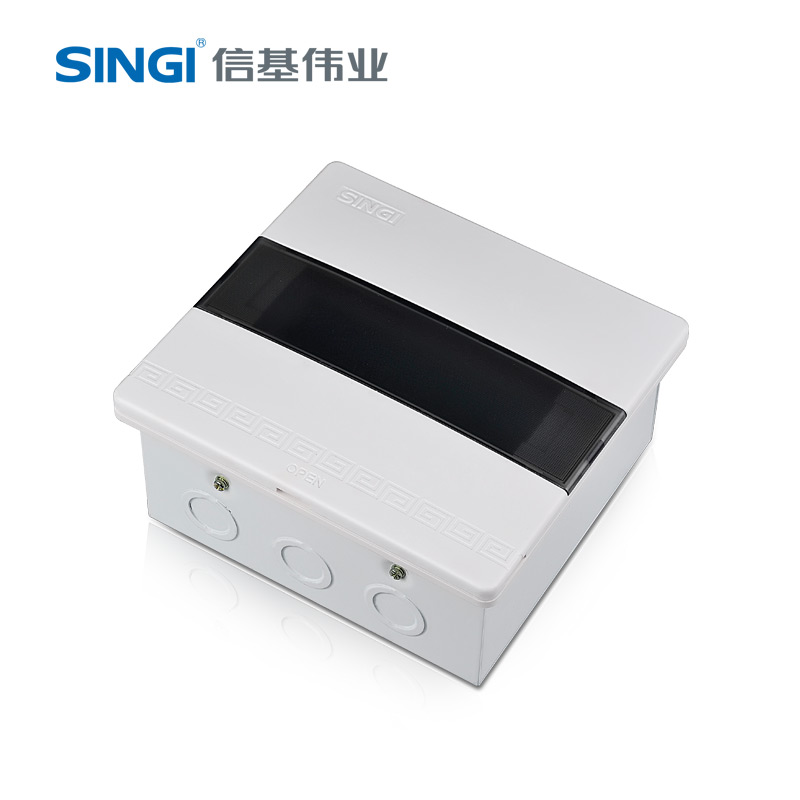

GNB60 Flush Mounted Transparent Cover

GNB60Series Power Distribution Box

PRODUCT INTRODUCTION

GNB series flush type and surface distribution boxes/distribution boards are mainly used in the circuit Of  AC 50Hz, rated

voltage 220V/380V, and acted to install the modular combination equipment. It  is widely used in the family, high building,

house, station, port, airport, commercial house, hospital,cinema, enterprises and so on occasion. The plastic unit of the GNB

Series Flush type and Surface type distribution boxes adopts ABS flame-proof material with the characteristics of flame-proof,

impulse proof excellent insulation property and so on.

FEATURES

.Standard IEC60670

.Protection degree IP30;

.4,7,10,13,15,18,20,26,30,36,39,45,54,72 modules available;

.4-18circuits single row, 20-36 circuits double rows ,39-72 circuits three rows available;

.Flush and surface installation available;

.Transparent and opaque available;

.Straight line surface;

.Convenient bound opening key;

.Flame-retardant PC panel ,ivory-white ,neverfade ,ABS frame;

.The installation screw is occlusion ,elegant;

.Terminal with flame-retardant shield, wiring is safe and reliable;

.The base is good cool-rolled steel plate,single row ,box is 0.8mm thickness, double or

multi rows 1.0mm thin and the surface is plastic casted;

.Good zinc-plated din to prevent from rust.

.Adjustable DIN rail ,adjustable depth;

.Certificates CE &CB.
